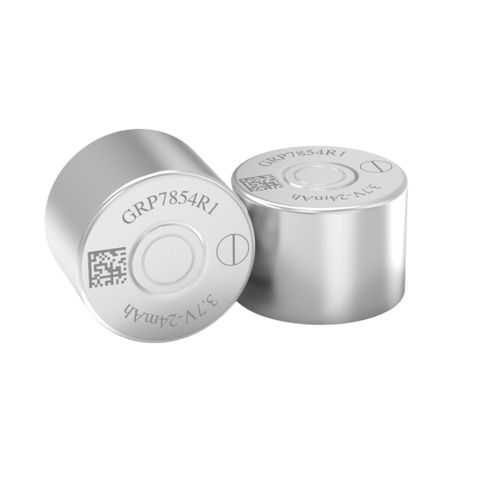

Name: GRP7854 Series Rechargeable Lithium-Ion Button Cell Battery
Brand: Grepow

Google Analytics

<p></p>
<table><thead><tr><th colspan="1" rowspan="1">Model NO.</th><th colspan="1" rowspan="1">Nominal Voltage</th><th colspan="1" rowspan="1">Full Charged Voltage</th><th colspan="1" rowspan="1">Nominal Capacity</th><th colspan="1" rowspan="1">Internal Resistance</th><th colspan="1" rowspan="1">Weight (±0.1)</th></tr></thead><tbody><tr><td>GRP7854R1</td><td>3.7V</td><td>4.2V</td><td>24mAh</td><td>≤ 1Ω</td><td>0.7g</td></tr><tr><td>GRP7854R2</td><td>3.7V</td><td>4.2V</td><td>28mAh</td><td>≤ 0.8Ω</td><td>0.75g</td></tr><tr><td>GRP7854F1</td><td>3.8V</td><td>4.35V</td><td>30mAh</td><td>≤ 1Ω</td><td>0.74g</td></tr><tr><td>GRP7854N1</td><td>3.9V</td><td>4.48V</td><td>31mAh</td><td>≤ 0.8Ω</td><td>0.75g</td></tr></tbody><tfoot></tfoot></table>
<p><strong>All the GRP7854 are in the same parameters as followings: </strong></p>
<p>*Battery Chemistry: LiCoO2</p>
<p>*Charging and Discharging C Rate: 1C</p>
<p>*Charging Temperature: 0 to +45℃</p>
<p>*Discharging Temperature: -20 to +60℃</p>
<p>*Storage Temperature: -20 to +40℃</p>


GRP7854 button cells are rechargeable li-ion button batteries independently developed by Grepow with low internal resistance, good rate performance, stable platform voltage, long cycle life, and a number of advanced core technology patents, etc., are widely used in various fields!

Grepow

Battery

GRP7854 Series Rechargeable Lithium-Ion Button Cell Battery

Home

About

Showcase

Contact

GRP7854 Series Rechargeable Lithium-Ion Button Cell Battery

Model NO.	Nominal Voltage	Full Charged Voltage	Nominal Capacity	Internal Resistance	Weight (±0.1)
GRP7854R1	3.7V	4.2V	24mAh	≤ 1Ω	0.7g
GRP7854R2	3.7V	4.2V	28mAh	≤ 0.8Ω	0.75g
GRP7854F1	3.8V	4.35V	30mAh	≤ 1Ω	0.74g
GRP7854N1	3.9V	4.48V	31mAh	≤ 0.8Ω	0.75g
